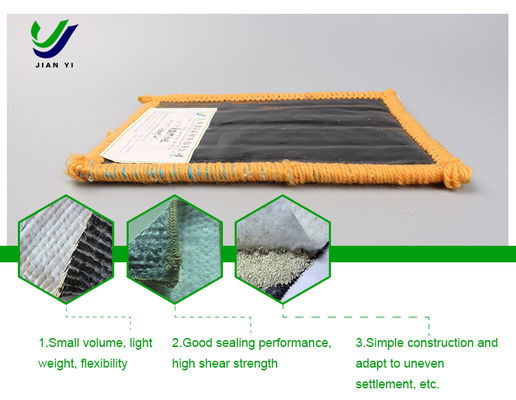

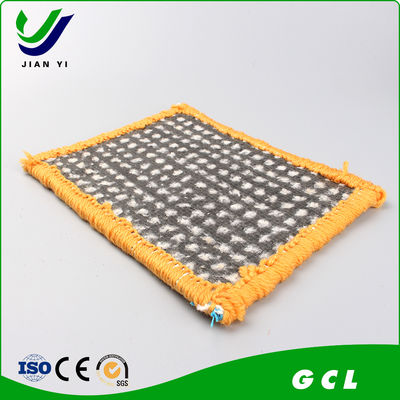

Reinforced Composite Bentonite Waterproof Blanket with High Tensile Strength and Long Service Life for Geosynthetic Clay Liner Applications

180m2
MOQ
0.83USD~2.75USD per sqm
कीमत
Reinforced Composite Bentonite Waterproof Blanket with High Tensile Strength and Long Service Life for Geosynthetic Clay Liner Applications
विशेषताएं गेलरी उत्पाद विवरण एक बोली का अनुरोध
विशेषताएं
निर्दिष्टीकरण
चौड़ाई: 4-6 मी
सूजन सूचकांक: ≥24मिली/2ग्राम
प्रकार: जियोसिंथेटिक क्ले लाइनर
इकाई का वज़न: ≥4000g/㎡
नीली मिट्टी: ≥30 ग्राम/100 ग्राम
अधिकतम भार पर बढ़ाव: ≥10%
प्रतिरोध हाइड्रोलिक दबाव: ≤5.0X10ˉ11मी/सेकेंड
बेंटोनाइट की स्थायित्वता: ≥20मिली/2ग्राम
प्रमुखता देना:

Reinforced Composite Bentonite Waterproof Blanket

,

High Tensile Strength Geosynthetic Clay Liner

,

Long Service Life Bentonite GCL
मूलभूत जानकारी
उत्पत्ति के प्लेस: चीन
ब्रांड नाम: JianYi
प्रमाणन: ISO 9001 CE
मॉडल संख्या: 4000-6000g/㎡
भुगतान & नौवहन नियमों
प्रसव के समय: 30 दिन
भुगतान शर्तें: टी/टी, एल/सी
आपूर्ति की क्षमता: 3000 टी / माह
उत्पाद विवरण
Bentonite Waterproof Blanket - Reinforced Composite Impermeable Material
Product Introduction
This reinforced bentonite waterproof blanket represents an advanced upgrade to traditional BWB technology. By integrating a high-strength geogrid between the bentonite layer and geotextile, the product achieves superior tensile strength and tear resistance while maintaining the exceptional water-swelling and impermeable properties of natural bentonite. Engineered for applications demanding enhanced structural integrity and waterproof reliability.
Product Features
  • High Tensile Strength: Geogrid reinforcement significantly enhances tensile strength and tear resistance, suitable for large-area installations and deformation-prone environments
  • Reliable Impermeability: Evenly distributed bentonite particles form a continuous impermeable layer that effectively blocks water seepage
  • Easy Installation: Lightweight and flexible design allows for simple cutting and laying, reducing construction complexity and improving efficiency
  • Long Service Life: Composite structure resists aging and damage, providing durable waterproof performance exceeding 50 years under normal conditions
Application Fields
Ideal for large-scale water conservancy projects including dams and sluices, highway and railway subgrade anti-seepage systems, landfill leachate collection and treatment facilities, industrial wastewater storage tanks, and coastal reclamation projects. Particularly suited for applications with extensive structural spans and demanding requirements for both anti-seepage performance and structural stability.
Product Installation Guidelines
  • Base Surface Preparation: Remove debris and sharp objects, level and compact the surface with flatness tolerance within ±5cm
  • Laying Sequence: Install from lower to upper sections along slopes; horizontal installation proceeds from upstream to downstream
  • Overlap Specifications: Maintain 20cm longitudinal overlap and 15cm transverse overlap widths
  • Connection Treatment: Apply bentonite paste to overlap areas for enhanced impermeability; secure with fixing nails at density of 2-3 nails per square meter
  • Inspection & Backfilling: Conduct comprehensive inspection for wrinkles, damage, and insufficient overlap; backfill with non-corrosive soil in compacted layers
Performance Advantage: The reinforced composite structure combines the proven waterproofing capabilities of bentonite with enhanced mechanical strength, delivering reliable long-term performance in demanding civil engineering applications.
